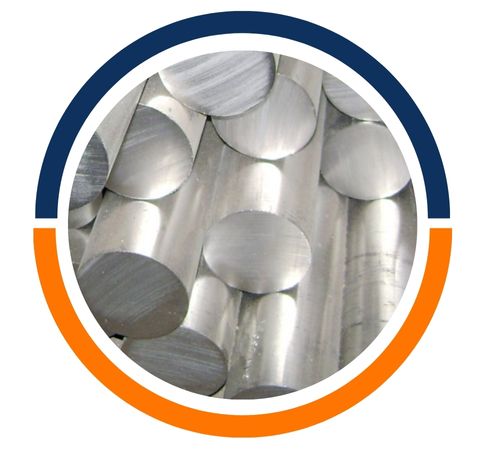

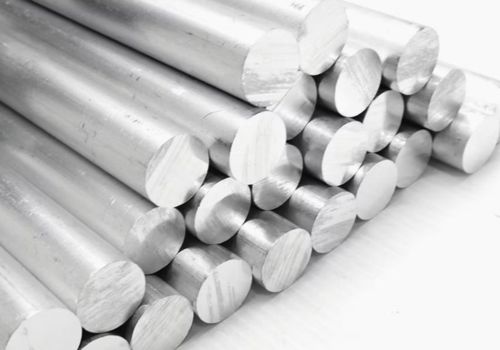

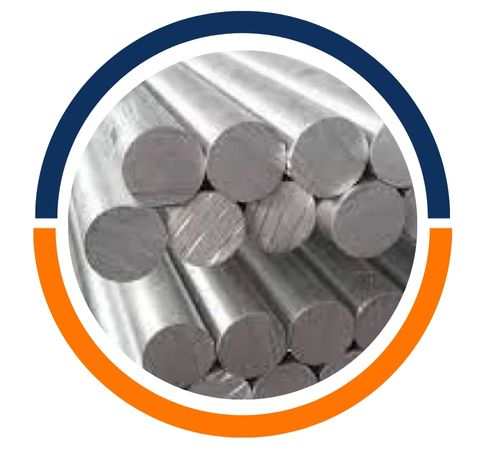

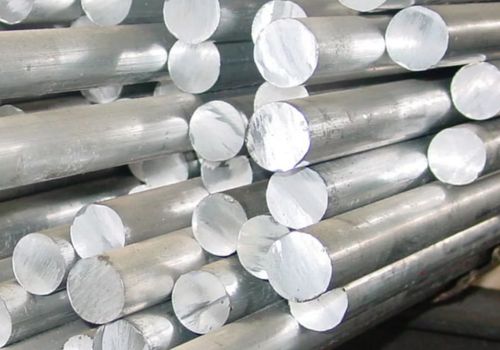

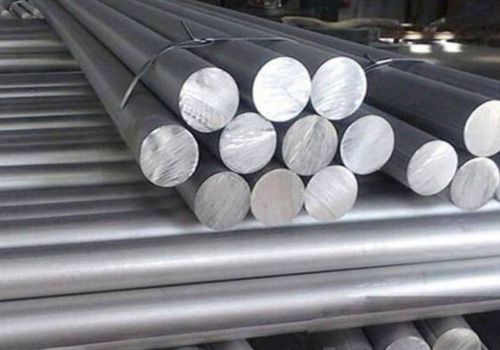

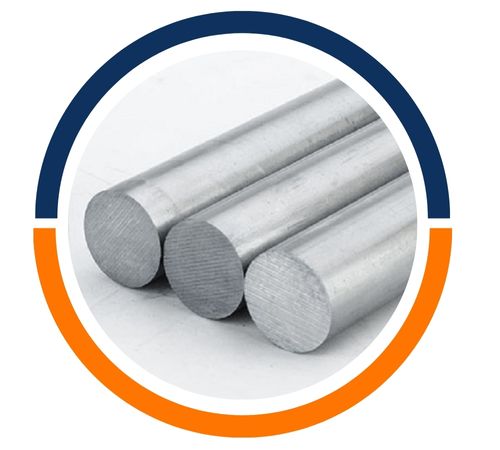

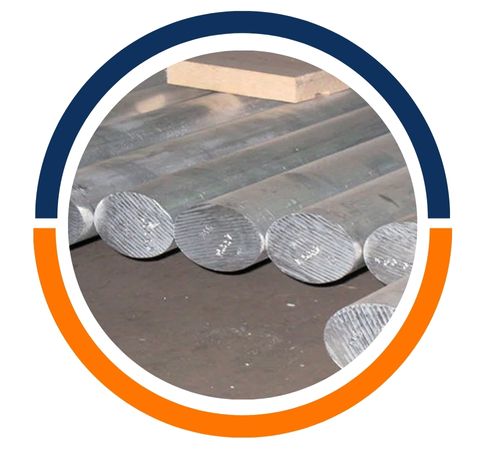

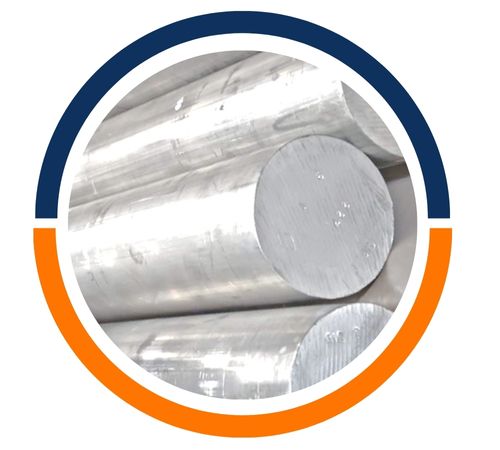

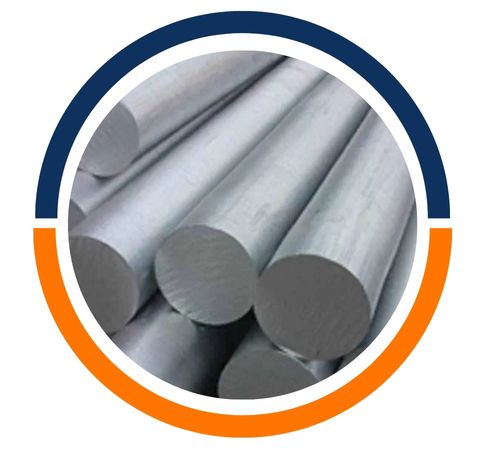

Nestled in the heart of Kinshasa, Banza Aluminium stands as a trusted partner for industry across the Congo. We take pride in manufacturing and supplying high-quality aluminium products, including the versatile Aluminium 1100 Round Bar. Known for its exceptional workability and consistent performance, this bar is a cornerstone for countless fabrication projects. When you source from us, you’re not just getting a material; you’re gaining a reliable ally dedicated to supporting your success with locally-produced, precision-grade aluminium solutions.
The Aluminium 1100 Round Bar is composed of a minimum of 99% aluminium, making it a commercially pure metal. This simple composition gives it excellent corrosion resistance and an attractive, bright finish. Mechanically, it is a softer alloy with high ductility, making it incredibly easy to weld and form. While it doesn’t achieve the high strength of other alloys, it offers superior thermal and electrical conductivity, which are key considerations for specific applications. Its ease of workability is its greatest asset.
| Specifications | ASTM B221, B211, B565, B316, AMS 4121 2014 |
|---|---|
| Temper | T3, T4, T5, T6, T651, T6511 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Length | 1000-6000 |
| Size: | 5 mm To 500 mm |
| Diameter | 6-500 |
| Finish | Bright, Polish & Black |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Aluminium 1100 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.35 – 0.50 | 0.25 – 0.35 | 0.01 – 0.03 | 0.01 – 0.05 | 0.05 – 0.20 | 0.01 – 0.05 | 0.020 – 0.030 | 99.00% |
| Mechanical Properties – AA 1100 | |||||||||||||||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | ||||||||||||||||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | |||||||||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | |||||||||||||
| H12 | 95 | 130 | 5 | 6 | 7 | ||||||||||||||
| H14 | 110 | 145 | 3 | 4 | 5 | ||||||||||||||
| H16 | 130 | 165 | 2 | 3 | 4 | ||||||||||||||
| H18 | 150 | — | 2 | 2 | 3 | ||||||||||||||
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 1100 | A91100 | — |
Banza Aluminium based in Kinshasa, Congo is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ |
| Melting Point | 643 – 657 °C (1190 – 1215 °F) |
| Tensile Strength (Ultimate) | 75 – 150 MPa (10.9 – 21.8 ksi) |
| Tensile Strength (Yield) | 34 – 55 MPa (4.9 – 8.0 ksi) |
| Elongation at Break | 15 – 28% |
| Hardness (Brinell) | 23 HB |
| Thermal Conductivity | 222 W/m·K |
| Electrical Conductivity | 61% IACS |
| Modulus of Elasticity | 68.9 GPa (10,000 ksi) |
| CD | Cold drawn | P | Polished |
| CG | Centreless ground | HF | Hot finished |
| BD | Bright drawn | SRE | Slit rolled edge |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| ST | Smooth turned | PR | Peeled and reeled |
Yes, we offer custom sizes for Aluminium 1100 Round Bars to meet specific project needs. Our team at Banza Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@banzaaluminium.com
This round bar is a true workhorse in the workshop, prized for applications where forming and joining are more critical than extreme strength. It is perfectly suited for creating spun parts, nameplates, and decorative trim due to its excellent finishing qualities. In electrical systems, it’s often used for bus bars and connectors because it conducts electricity so well. You’ll also find it in everyday items like kitchen utensils, pots and pans, and rivets, where its non-toxic nature and resistance to corrosion are highly valued.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
